Migrate GitLab object storage from MinIO to Ceph RGW

One of the reasons I set up Ceph RGW was to provide object storage for my self-hosted GitLab instance. Up to this point it had been relying on the bundled MinIO deployment for object storage, but as I pointed out in the previous post, it would mean some extra layers of indirection upon Ceph’s built-in object storage.

Self-hosted Object Storage with Ceph RGW

November 21, 2025• 9 min read

cephs3rgw

Also,

By default, MinIO is enabled out of the box, but is not recommended for production use. When you are ready to disable it, run –set global.minio.enabled: false. — Using MinIO for Object storage

So I set out to migrate everything from MinIO to RGW.

Environment

Ceph: 19.2.3 Squid, installed via Proxmox APT repository
Kubernetes: v1.33.4+k3s1
GitLab: Helm chart v9.6.0

Data migration

Before anything, data must exist in RGW. Initially I tried migrating data on my local machine using

1

kubectl port-forward -n gitlab svc/gitlab-minio-svc 9000:9000

but the port forward kept dropping connections during large transfers.

So I gave a load balancer IP to MinIO service temporarily:

1
2
3


# ...
  type: LoadBalancer
  loadBalancerIP: 10.0.69.241

Then I obtained MinIO access keys from GitLab secret:

1
2


kubectl get secret -n gitlab gitlab-minio -o jsonpath="{.data.accesskey}" | base64 -d
kubectl get secret -n gitlab gitlab-minio -o jsonpath="{.data.secretkey}" | base64 -d

and configured rclone on my local machine (~/.config/rclone/rclone.conf):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13


[minio]
type = s3
provider = Minio
access_key_id = [MINIO_ACCESS_KEY]
secret_access_key = [MINIO_SECRET_KEY]
endpoint = http://10.0.69.241:9000

[rgw]
type = s3
provider = Ceph
access_key_id = [RGW_ACCESS_KEY]
secret_access_key = [RGW_SECRET_KEY]
endpoint = https://rgw.i.junyi.me

Then I used a script mig_gitlab.sh to do the work:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17


# Obtain bucket list from source
buckets=($(rclone lsd minio: | awk '{print $5}'))
# echo buckets to migrate: "${buckets[@]}"

# Create all buckets in destination
for bucket in "${buckets[@]}"; do
  echo "Creating bucket: $bucket"
  s3cmd mb s3://$bucket 2>/dev/null || echo "Bucket $bucket already exists"
done

# Sync each bucket
for bucket in "${buckets[@]}"; do
  echo "================================"
  echo "Syncing bucket: $bucket"
  echo "================================"
  rclone sync minio:$bucket rgw:$bucket --progress --transfers=8 --checkers=16 -vv
done

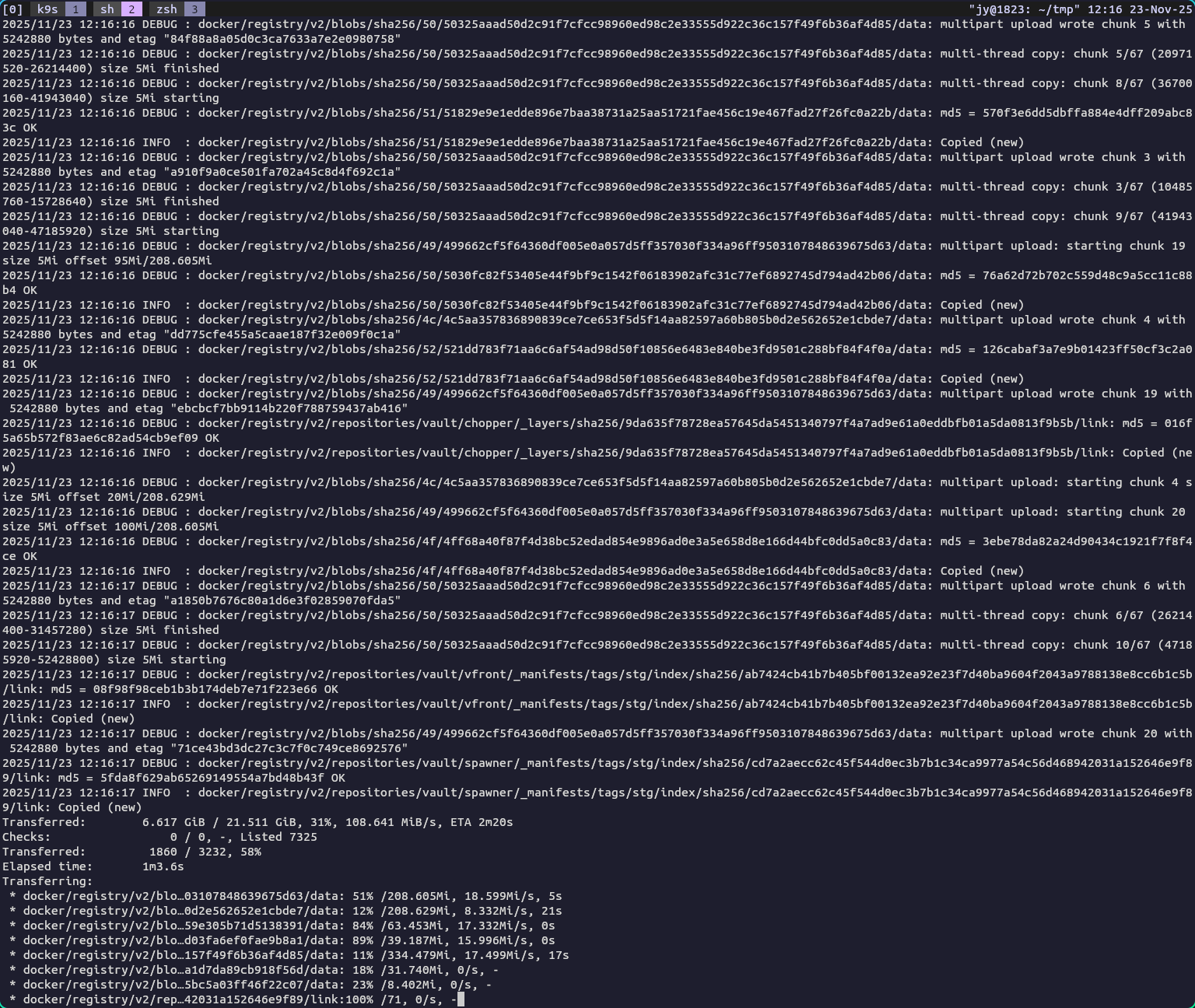

The logs turned out to be useless, but it was pretty fun to watch the progress bars fly by.

Syncing

Configuring the chart

With the data in place, now it’s time to configure GitLab to use RGW. It took me a few attempts to configure everything correctly, but GitLab’s helm chart was intelligent enough to refuse migration if something was misconfigured.

First, I created all the secrets needed for RGW access:

secrets.yml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54


apiVersion: v1
kind: Secret
metadata:
  name: gitlab-object-storage
  namespace: gitlab
type: Opaque
stringData:
  connection: |
    provider: AWS
    region: default
    aws_access_key_id: [RGW_ACCESS_KEY]
    aws_secret_access_key: [RGW_SECRET_KEY]
    host: rgw.i.junyi.me
    endpoint: https://rgw.i.junyi.me
    path_style: true
    aws_signature_version: 4

---

apiVersion: v1
kind: Secret
metadata:
  name: gitlab-registry-storage
  namespace: gitlab
type: Opaque
stringData:
  config: |
    s3:
      accesskey: [RGW_ACCESS_KEY]
      secretkey: [RGW_SECRET_KEY]
      region: default
      regionendpoint: https://rgw.i.junyi.me
      bucket: registry
      encrypt: false
      secure: true
      v4auth: true
      rootdirectory: /

---

apiVersion: v1
kind: Secret
metadata:
  name: gitlab-backup-storage
  namespace: gitlab
type: Opaque
stringData:
  .s3cfg: |
    [default]
    access_key = [RGW_ACCESS_KEY]
    host_base = rgw.i.junyi.me
    host_bucket =
    secret_key = [RGW_SECRET_KEY]
    use_https = true

Yes it does feel wrong to have access keys in multiple secrets, I don’t love it, but that’s a task for later. Maybe something like HashiCorp Vault can help here.

These are the changes I made to values.yaml:

values.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70


global:
  minio:
    enabled: false
    appConfig:
    object_store:
      enabled: true
      proxy_download: true # downloads go through app servers
      connection:
        secret: gitlab-object-storage
        key: connection

    lfs:
      enabled: true
      bucket: git-lfs

    artifacts:
      enabled: true
      bucket: gitlab-artifacts

    uploads:
      enabled: true
      bucket: gitlab-uploads

    packages:
      enabled: true
      bucket: gitlab-packages

    external_diffs:
      enabled: true
      bucket: gitlab-mr-diffs
      connection:
        secret: gitlab-object-storage
        key: connection

    terraform_state:
      enabled: true
      bucket: gitlab-terraform-state

    ci_secure_files:
      enabled: true
      bucket: gitlab-ci-secure-files

    dependency_proxy:
      enabled: true
      bucket: gitlab-dependency-proxy

    pages:
      enabled: true
      bucket: gitlab-pages

    backups:
      bucket: gitlab-backups
      tmpBucket: tmp

  registry:
    bucket: registry

registry:
  storage:
    secret: gitlab-registry-storage
    key: config

gitlab:
  toolbox:
    backups:
      objectStorage:
        backend: s3
        config:
          secret: gitlab-backup-storage
          key: .s3cfg

The full manifest:

values.yaml

    1   2   3   4   5   6   7   8   9  10  11  12  13  14  15  16  17  18  19  20  21  22  23  24  25  26  27  28  29  30  31  32  33  34  35  36  37  38  39  40  41  42  43  44  45  46  47  48  49  50  51  52  53  54  55  56  57  58  59  60  61  62  63  64  65  66  67  68  69  70  71  72  73  74  75  76  77  78  79  80  81  82  83  84  85  86  87  88  89  90  91  92  93  94  95  96  97  98  99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198


class="line">apiVersion: argoproj.io/v1alpha1 class="nt">kind: Application class="nt">metadata: annotations: notifications.argoproj.io/subscribe.slack: production name: gitlab namespace: argocd class="nt">spec: destination: namespace: gitlab server: https://kubernetes.default.svc project: default source: repoURL: http://charts.gitlab.io/ chart: gitlab targetRevision: 9.6.0 helm: valuesObject: global: application: create: false links: [] allowClusterRoles: true hosts: domain: junyi.me https: true tls: enabled: true secretName: junyi-me-production ssh: git.junyi.me gitlab: name: git.junyi.me https: true registry: name: regist.junyi.me https: true pages: name: pages.junyi.me https: true ingress: class: traefik configureCertmanager: false tls: enabled: true secretName: junyi-me-production psql: host: central-rw.postgres.svc.cluster.local port: 5432 database: gitlab username: gitlab password: useSecret: true secret: gitlab-postgres key: password minio: enabled: false initialRootPassword: secret: gitlab-init key: password praefect: enabled: true virtualStorages: - name: default gitalyReplicas: 3 maxUnavailable: 1 psql: host: central-rw.postgres.svc.cluster.local port: 5432 database: praefect username: praefect dbSecret: secret: gitlab-postgres key: praefectPassword monitoring: enabled: false kas: enabled: false appConfig: omniauth: enabled: true allowSingleSignOn: ['openid_connect'] blockAutoCreatedUsers: false autoLinkUser: ['openid_connect'] syncProfileFromProvider: ['openid_connect'] syncProfileAttributes: ['email', 'name'] providers: - secret: gitlab-oidc-authentik object_store: enabled: true proxy_download: true # downloads go through app servers connection: secret: gitlab-object-storage key: connection lfs: enabled: true bucket: git-lfs artifacts: enabled: true bucket: gitlab-artifacts uploads: enabled: true bucket: gitlab-uploads packages: enabled: true bucket: gitlab-packages external_diffs: enabled: true bucket: gitlab-mr-diffs connection: secret: gitlab-object-storage key: connection terraform_state: enabled: true bucket: gitlab-terraform-state ci_secure_files: enabled: true bucket: gitlab-ci-secure-files dependency_proxy: enabled: true bucket: gitlab-dependency-proxy pages: enabled: true bucket: gitlab-pages backups: bucket: gitlab-backups tmpBucket: tmp registry: bucket: registry registry: storage: secret: gitlab-registry-storage key: config installCertmanager: false certmanager: installCRDs: false nginx-ingress: enabled: false prometheus: install: false postgresql: install: false gitlab-runner: runners: config: | [[runners]] [runners.kubernetes] privileged = true allow_privilege_escalation = true [runners.kubernetes.pod_security_context] run_as_non_root = false [runners.kubernetes.build_container_security_context] run_as_user = 0 run_as_group = 0 [[runners.kubernetes.pod_spec]] name = "device-fuse" patch_type = "strategic" patch = ''' containers: - name: build securityContext: privileged: true resources: limits: github.com/fuse: 1 ''' gitlab: toolbox: backups: cron: enabled: true schedule: "0 2 * * *" objectStorage: backend: s3 config: secret: gitlab-backup-storage key: .s3cfg gitaly: persistence: size: 200Gi syncPolicy: automated: prune: true selfHeal: true

Conclusion

It was pretty cool to learn that I could self-host a object storage and use it with a self-hosted instance of GitLab.

From a user’s point of view it didn’t make much difference (which is a good thing), and it gave me as a maintainer more flexibility and control over my data. For instance, if I have more applications using RGW in the future, I can manage access keys and buckets in one place, and backups would be more straightforward too.
